• Control voltage: 24 VAC (18-30 VAC), 60 Hz
• Line voltage: 115 VAC, 60 Hz
• Power consumption: 0. 3A plus gas valve current at 24 VAC
• Operating temperature: -40C (-40F) to 75C (176F)
• Post-purge: 90, 120, 160 and 180 seconds

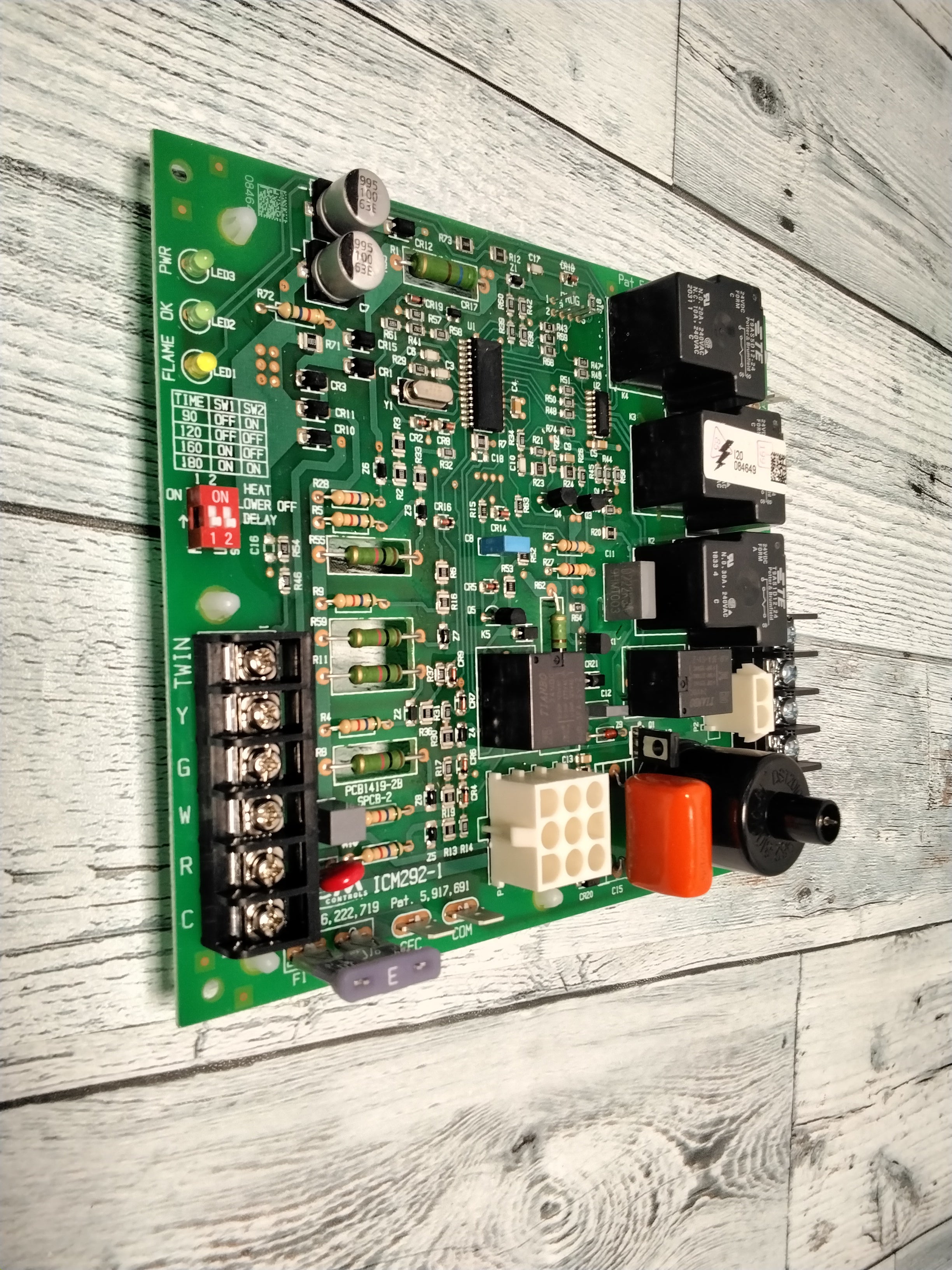

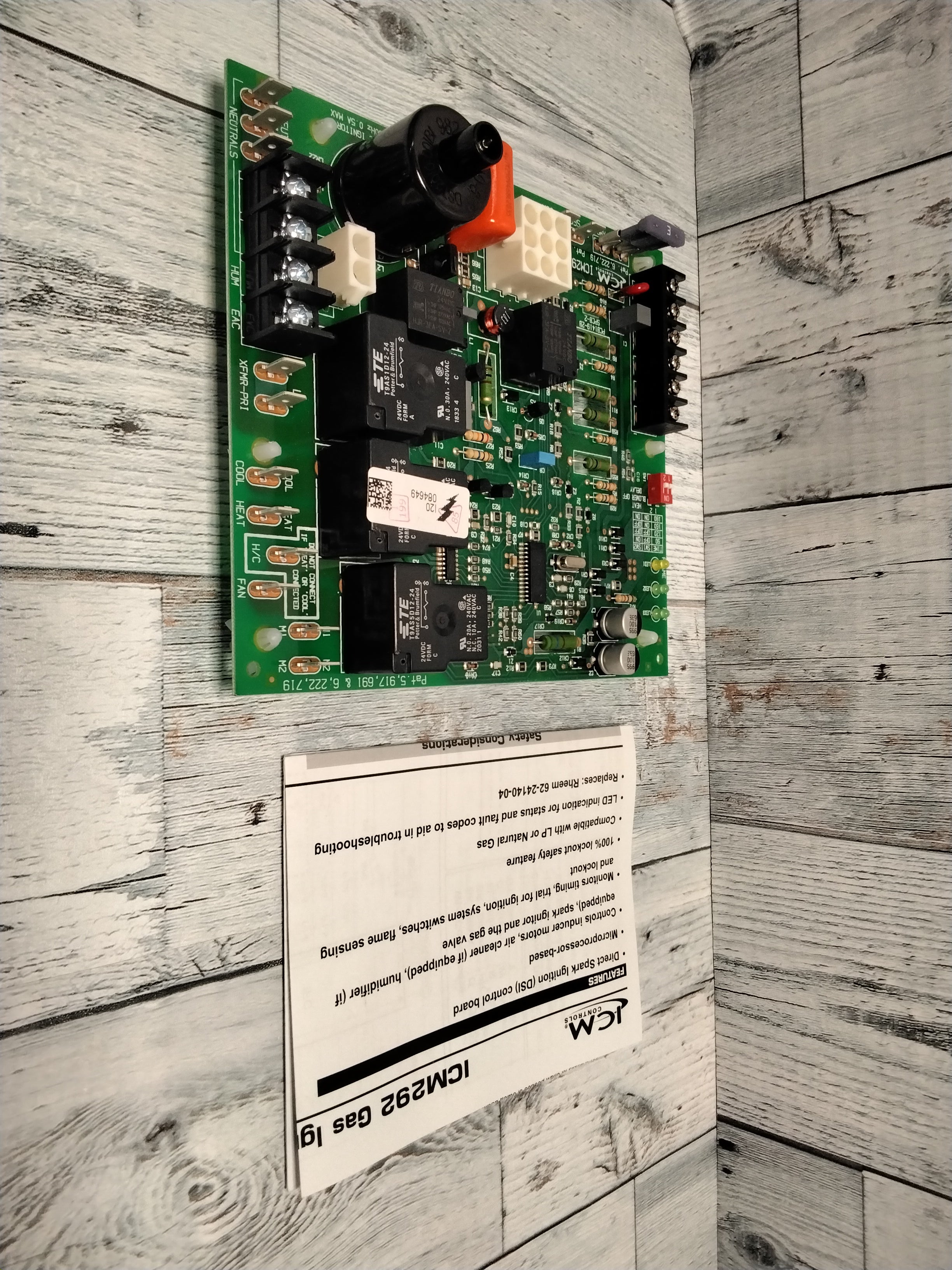

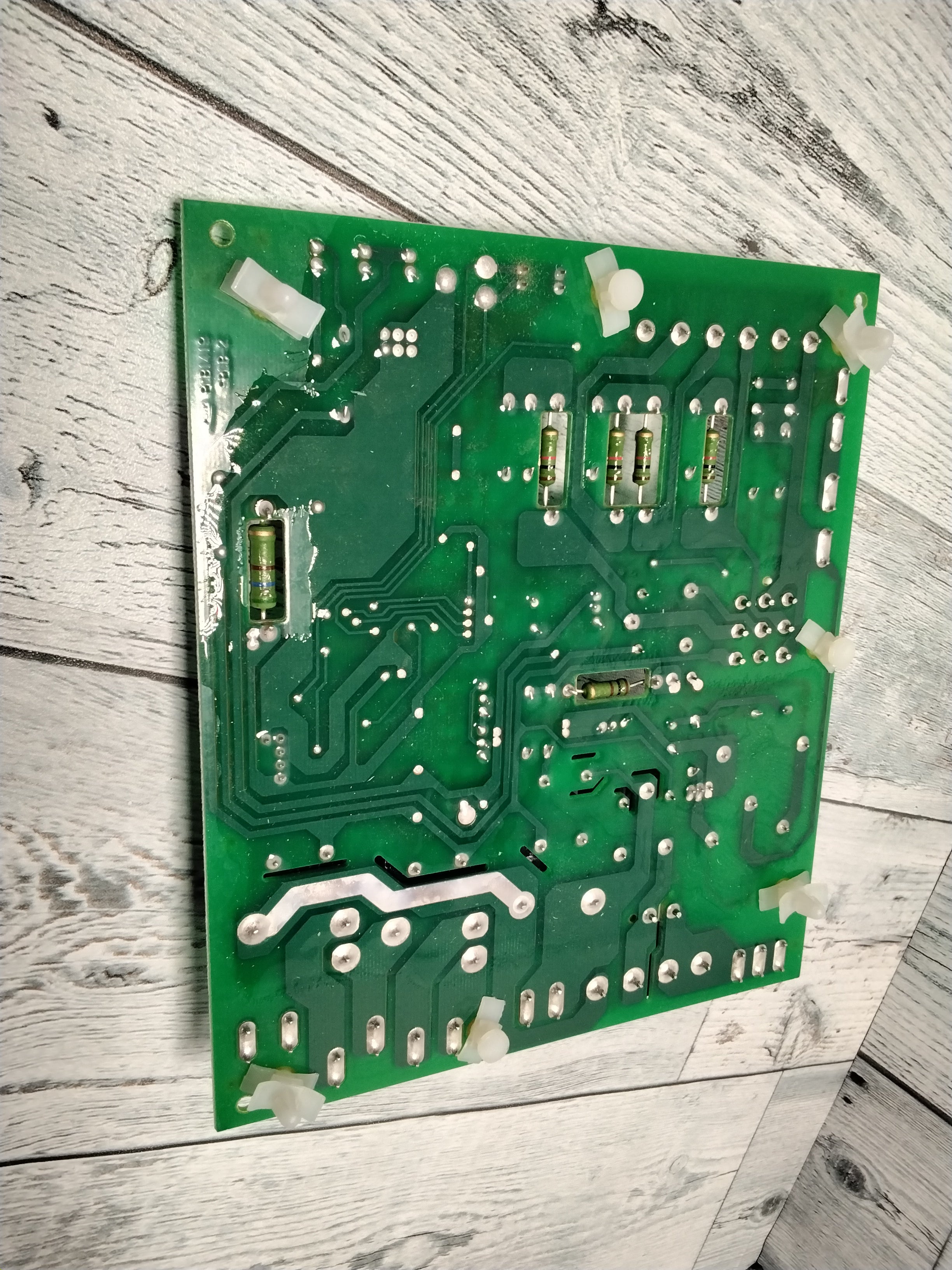

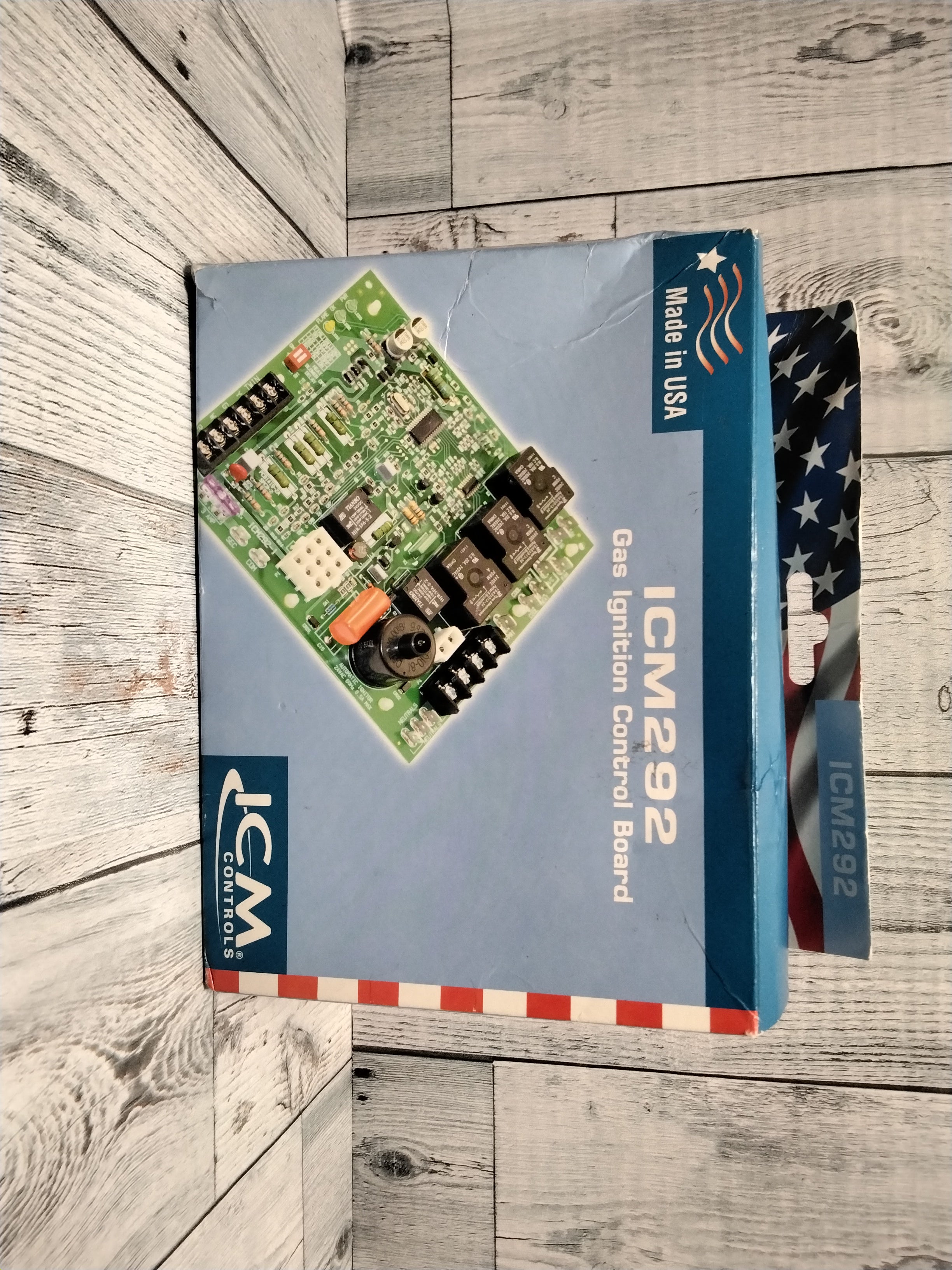

*FOR PARTS/NOT WORKING* Item wasn't able to be tested so listing as parts only. See images for item condition. Everything included with the item can be seen in the images.  ICM292 Gas Ignition Control Board Low cost, direct replacement ignition control Features: Direct Spark Ignition (DSI) control board Microprocessor-based Controls inducer motors, air cleaner (if equipped), humidifier (if equipped), spark ignitor and the gas valve Monitors timing, trial for ignition, system switches, flame sensing and lockout 100% lockout safety feature Compatible with LP or Natural Gas LED indication for status and fault codes to aid in troubleshooting Specifications: Control voltage: 24 VAC (18-30 VAC), 60 Hz Line voltage: 115 VAC, 60 Hz Power consumption: 0. 3A plus gas valve current at 24 VAC Operating temperature: -40C (-40F) to 75C (176F) Timing -Pre-purge: 30 seconds -Trial for ignition: 7 seconds - Retries: Two groups of two, 30 seconds delay within the group and 3minutes delay between groups -Lockout: 1 hour - Post-purge: 90, 120, 160 and 180 seconds Inputs - Power: 24 VAC and COM -Thermostat interface: R, W, Y and G - System switches: Vent Pressure and Limit switches (Main and Over-temperature switches in series) - Flame Sensing - Heat blower OFF delay miniature slide switch set Outputs - Spark - Gas Valve: GV - Inducer draft motor: IDM - Blower motor: FAN, COOL and HEAT speeds - Electric Air Cleaner: EAC - Humidifier relay: HUM - Heat/Cool relay: H/C LED indicators - Power, green LED: PWR - Status, green LED: OK - Flame status, yellow LED: FLAME Used in Honeywell, Rheem, Ruud Heat Controller, Weather king Furnace Models and many more that are not listed here: GLH-06EAUEA, GLH-07EAMGA, GLH-07EAUEA, GLH-10EAMEA, GRA-07EYBG278 and GTA-07EYBG278. Replacement for Obsolete Circuit Board Part Numbers: 62-24140-0 From the Manufacturer Rheem is the industry leader for total heating, cooling and water heating solutions. In fact, Rheem is one of the few global brands with product offerings covering residential and commercial heating, cooling, conventional storage-style water heaters, tankless water heaters, solar water heating systems, replacement parts and accessories for all categories-making us a one-stop solutions provider.
