• Battery-powered, standalone electronic lockset for storeroom and classroom use provides a PIN-based access credential verification system for up to 500 users
• Access credentials and lock status are maintained manually through the keypad and stored on the lock
• 12-button keypad requires a three- to six- digit code to unlock the door and provides increased security compared to cards or manual keys, which can be lost
• Satin chrome finish lockset has an angular lever handle that can be installed as right or left handed and has a Schlage 6-pin full cylinder keyway with two keys
• Mortise lock inserts into a large cutout in the edge of the door, enabling a more secure latch than a cylindrical lock

The Schlage Electronics CO-100 series standalone electronic mortise lock with
satin chrome finish and Rhodes-style lever handle is battery powered, provides
a secure door latching system for storeroom and classroom use, includes a
manually programmed keypad to verify access credentials of up to 500 users,
and contains a Schlage cylinder keyway. The lockset assembly functions
independently and without a control system; access credentials and lock status

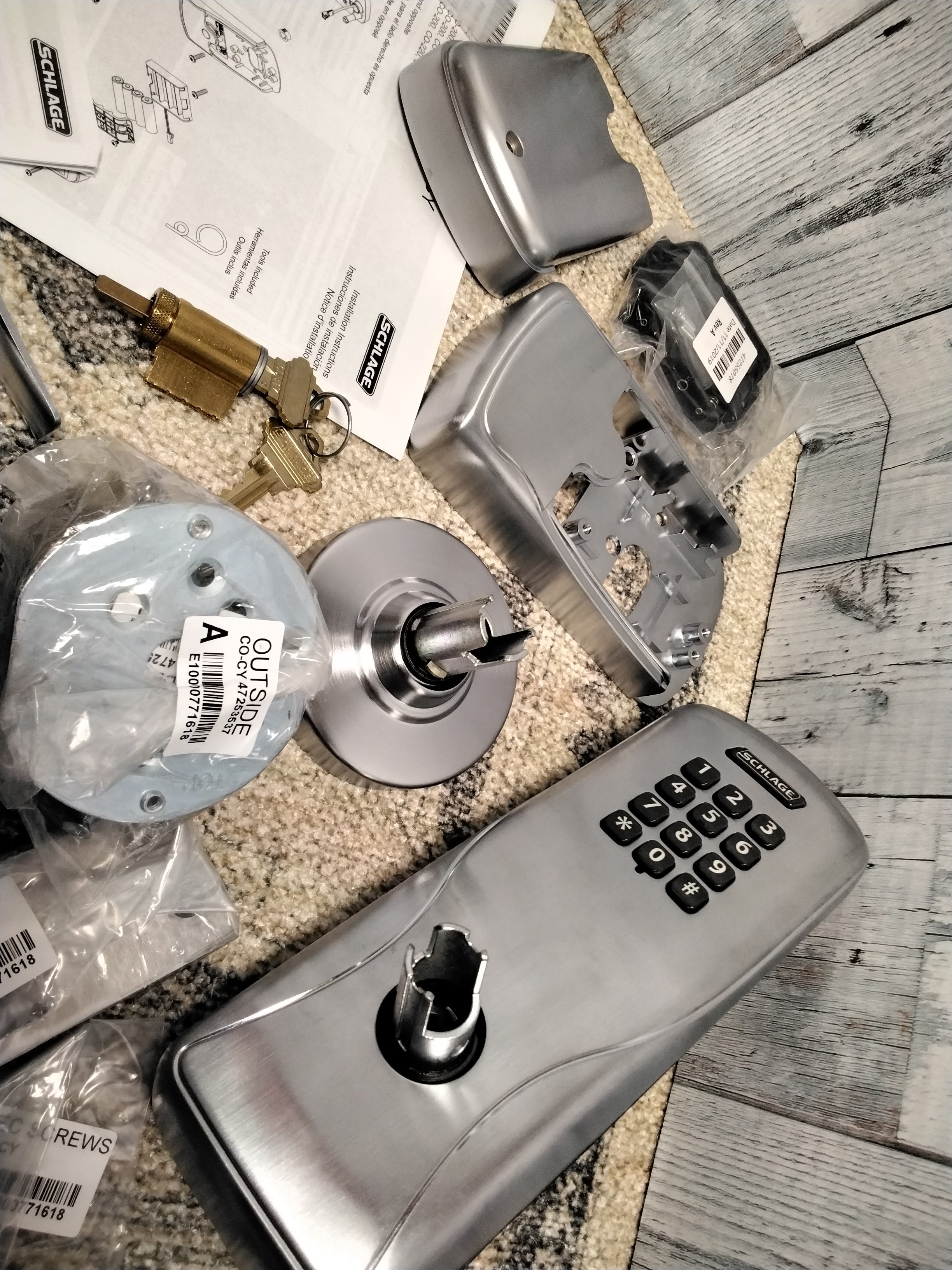

are modified using the keypad and are stored on the lock. The 12-button keypad
requires a three-to six-digit code to unlock the door and provides increased
security compared to cards and manual keys, which can be lost. The mortise
lock inserts into a large cutout in the edge of the door, enabling a more
secure latch than a cylindrical lock.The angular Rhodes-style lever handle is
made of steel and can be installed as right or left handed. The two included
keys and the Schlage 6-pin full cylinder keyway in the base of the lever
handle enable mechanical override of the electronic system. Three colored LED
lights and an audio signal can be programmed to indicate when credentials are
validated or denied. LED lights can also be programmed to indicate when
batteries are running low. The inside handle does not lock, allowing users to
exit any time.SpecificationsSpecifications metLockset meets ANSI/BHMA A156.25,
ANSI/BHMA Grade 1, UL 294, UL 10 C, FCC Part 15, ADA and RoHS
specifications.Exterior housing dimensions9.46 x 3.44 x 3.67 inches (H x W x
D)Interior assembly dimensions10.69 x 3.44 x 2.96 inches (H x W x
D)Compatible door thickness1-3/4"Backset2-3/4"Power supply4 AA batteriesH is
height, the vertical distance from the lowest to highest point; W is width,
the horizontal distance from left to right not including the lever; D is
depth, the horizontal distance from front to back including the lever.For more
information, see the manufacturer's literature.Electronic door locking systems
use electric current to control and secure access. Entry is regulated with a
door access device such as a keypad or a reader that limits entry to
authorized users. Some systems can designate user access for specific hours or
days and may include a keyway for mechanical override. Common electronic
locking mechanisms include electromagnetic locks and electric strikes. These
systems are hardwired or battery powered, which is suitable when electrical
wiring is not readily available. Locks are available in cylindrical and
mortise styles. A cylindrical lock requires two bored perpendicular holes in
the door for installation: one in the door face and a crossbore hole in the
door edge. A mortise lock fits into a pocket recess in the door edge.Schlage
Electronics, an Allegion brand, manufactures security products for commercial

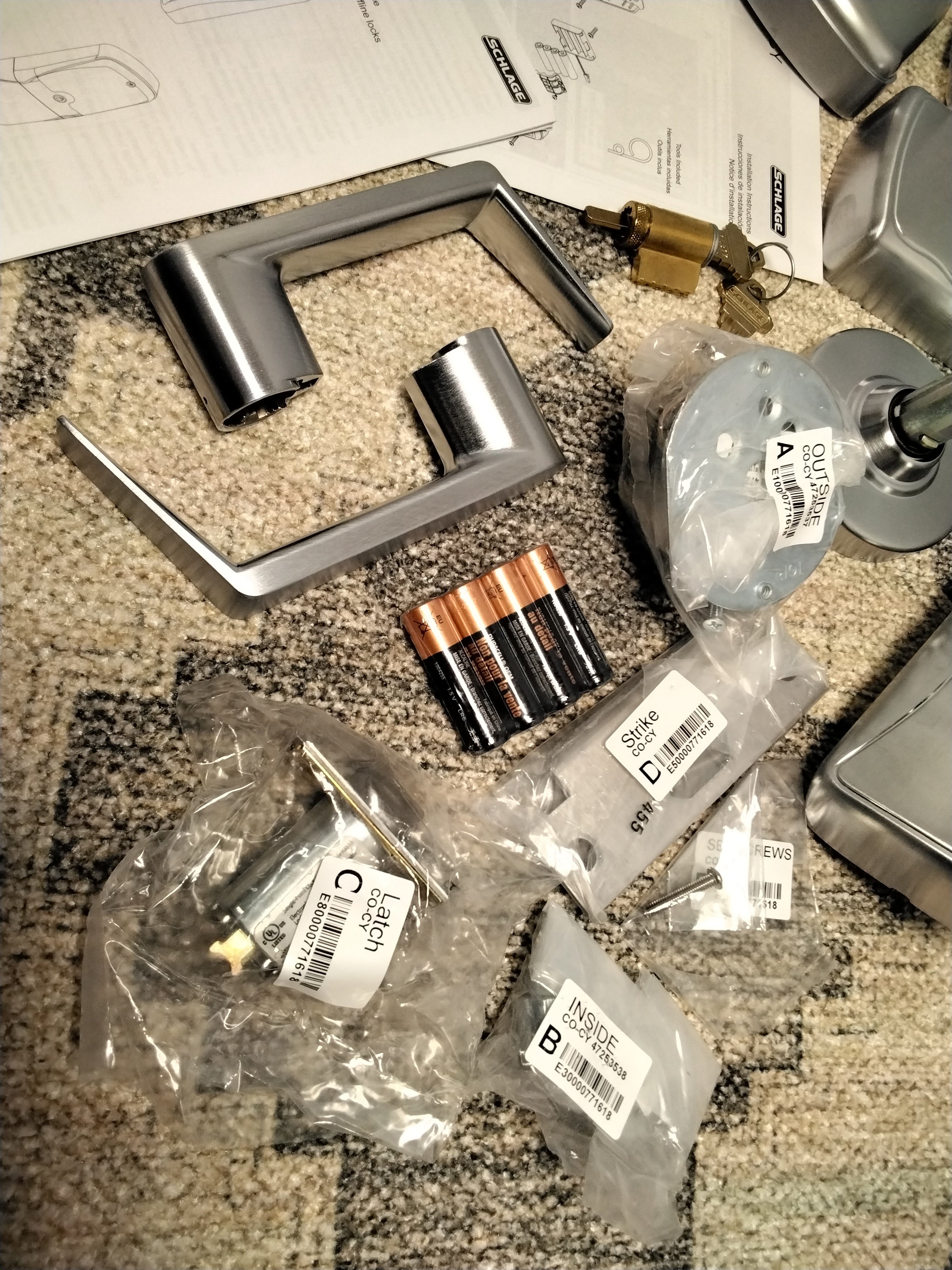

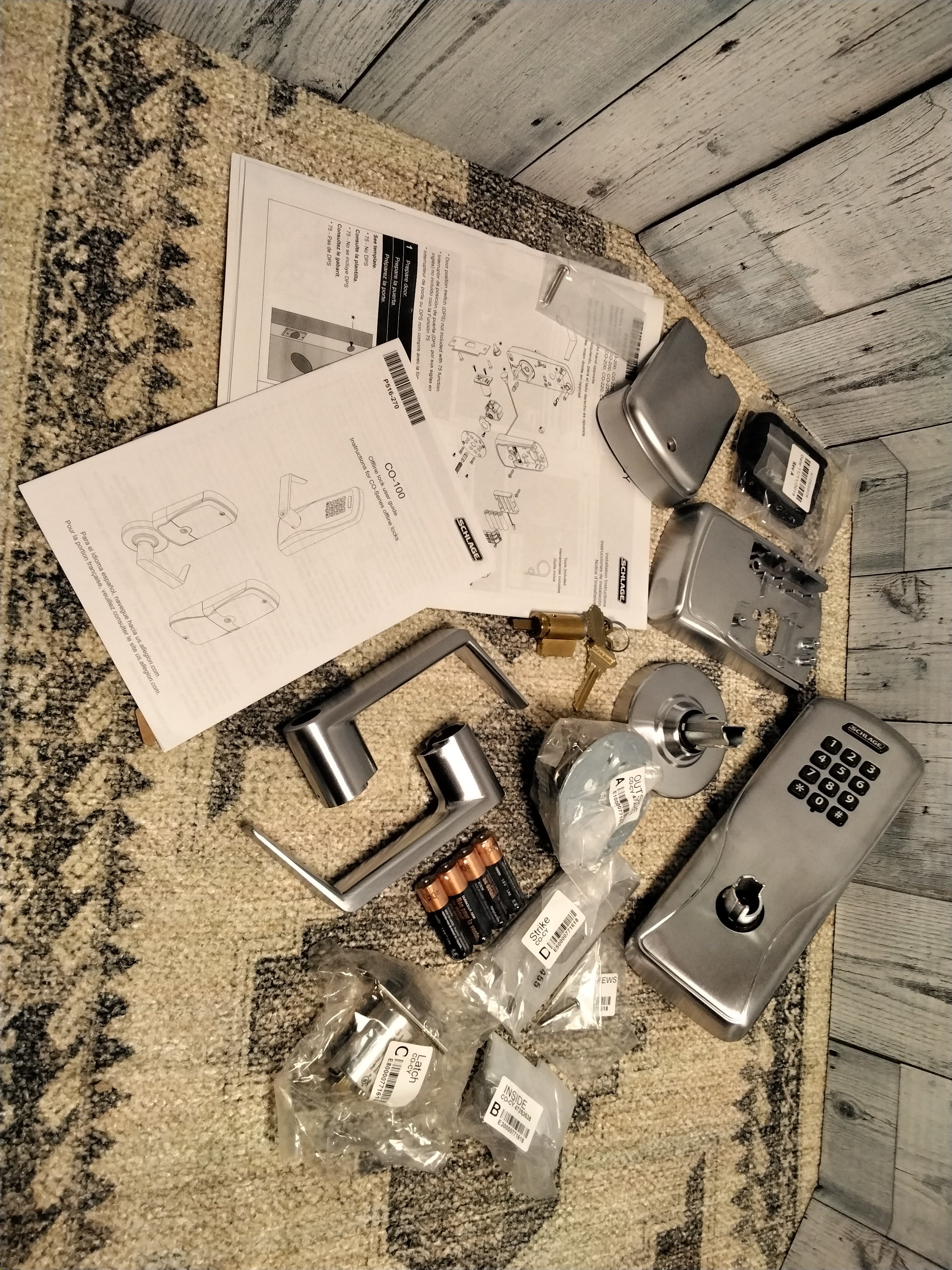

and residential use. Allegion is headquartered in Carmel, IN.What's in the
Box?Schlage electronic lockset assembly4 AA batteries2 keysLever removal
toolMounting hardwareInstructions
